PSI Audio - A17-M Speaker

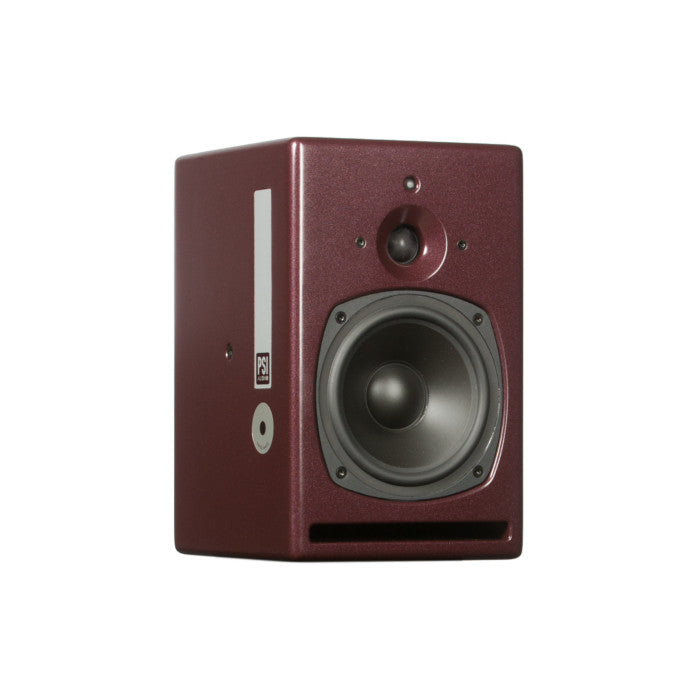

A17-M – Powerful near field monitor

A classic near-field precision monitor, the A17-M is the ideal entry model to the PSI Audio range. Perfectly suited for surround sound and near-field applications, the A17-M is ideal for studio application where the ultimate in precision is required. Its compact form incorporates the full range of PSI Audio’s outstanding technologies.

The powerful bi-amplified output features the unique “AOI” output stages, while the active crossover, with integrated “CPR”, delivers unprecedented impulse behavior – with excellent stereo imaging. The crossover is also optimized for maximum phase coherence, projecting a wide horizontal and vertical ideal listening area.

It comes in Red or Black color.  To learn more about this amazing product, please Click here .

Read more

Send Enquiry on PSI Audio - A17-M Speaker

Thank you for your enquiry. We will get back to you as soon as possible.

Send Enquiry on PSI Audio - A17-M Speaker

* denotes required fields.

Overview

Product Key Features

  • Very broad bandwidth in a compact cabinet.
  • Flat frequency response.
  • Optimised directivity by phase coherency.
  • Optional metal bracket.
  • Protection circuits with overload indicator.
  • Real balanced input.
  • Designed for stereo and multichannel monitoring.
  • Magnetically shielded for use close to video monitors.
  • AOI Technology.
  • ALG Technology.
  • CPR Technology.
  • PSC Technology.

      General Specs

      • Power RMS: 80 + 40W
      • Program Power: 120W
      • Input Impedance: Sym, 10k Ohms
      • Sensivity for 100 dB @ 1m: 0.775 V
      • Signal to Noise Ratio: 96 dBA
      • Continuous Max SPL@1m: 104 dB (single)
      • Input Overload: 24 Vpp
      • Program Max SPL@1m: 115 dB (pair)
      • Response at -6dB: 43 - 23000 Hz
      • Tolerances: ±2.5 dB (50Hz - 20kHz)
      • Distortion THD: less than 1.5% (100Hz-12kHz)
      • Phase tolerances: ±45° (180Hz - 20kHz)
      • Dispersion (P.N. 4 - 16 kHz) at -6 dB: 90° x 90° (H x V)
      • System: 2 Way(s)
      • Crossover frequency: 3.0 kHz
      • Woofer's dim. Ext. / Diaphragm: Ø175 mm / Ø130 mm
      • Tweeter's dim. Ext. / Diaphragm: Ø100 mm / Ø25 mm
      • Connectors: 1 x XLR F / 3P
      • Signal input: 1=GND, 2=(+), 3=(-)
      • Material: MDF
      • Dimensions W x H x D mm: 200 x 320 x 230
      • Gross / Net Weight: 9.5 / 8.4 kg
      • Voltage: 115/230V (50-60Hz)
      • Consumption Standby-Quiescent-Max: 1.4 - 6 - 100W
      • Mean / Max Humidity: less than 75% / less than 90%
      • External Temperature: 5 - 40°C
