DHLAB D110

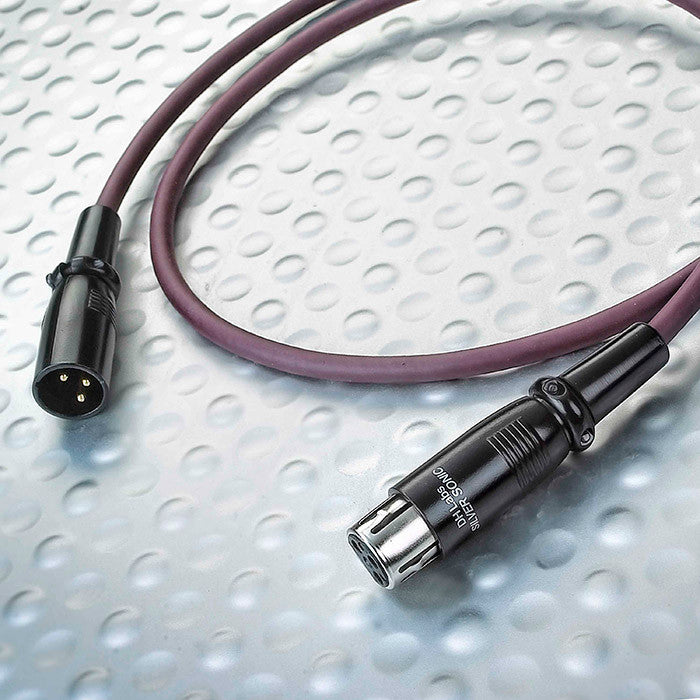

The Silver Sonic D-110 is a precision 110 Ohm AES/EBU type balanced digital interface cable. 110 Ohm digital cables are most often used to carry digital audio data from A/D converters to digital tape transports in recording studios. They are also used between CD transports and D/A converters in home hi-fi systems as an alternative to the more common S/PDIF 75 Ohm coaxial interface. 110 Ohm cables are terminated with XLR connectors.

If desired length is not listed, please send us an inquiry.

Read more
Connector
1
Termination
1
Length
1
Quantity
1

S$109.00 (W/out GST)

S$109.00 (With GST)

For local delivery, charges may apply. For international orders, please email us at sales@mysoundaffairs.com.

Send Enquiry on DHLAB D110

Thank you for your enquiry. We will get back to you as soon as possible.

Send Enquiry on DHLAB D110

* denotes required fields.

Overview

A critical goal for any digital interface cable is to maintain a uniform characteristic impedance. This is achieved in the D-110 through the use of a pure PTFE insulation whose thickness is held to a tolerance of .002 inch (.05 mm). The material is extruded under pressure in order to maintain maximum consistency, which minimizes a phenomenon called "VSWR spikes", a cause of jitter.

Other features of the D-110 include silver coated conductors for improved conductivity, solid rod spacers to maintain a constant impedance, and 100% shield coverage to eliminate noise and interference.
