Benchmark LA4 Line Amplifier
  • Benchmark LA4 Line Amplifier
  • Benchmark LA4 Line Amplifier
  • Benchmark LA4 Line Amplifier

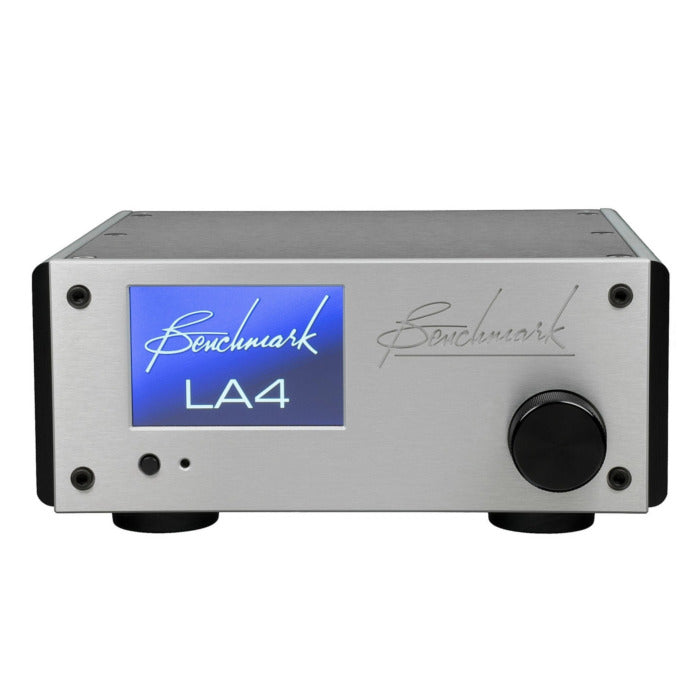

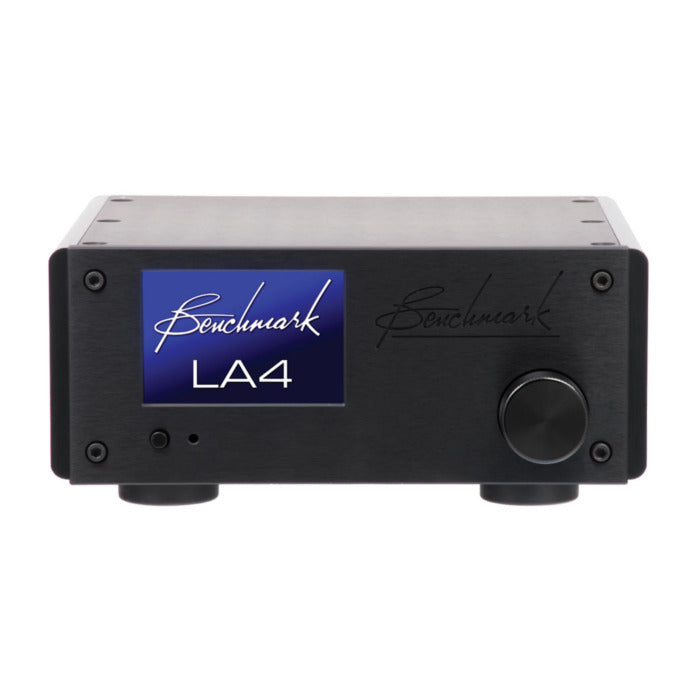

Benchmark LA4 Line Amplifier

The LA4 is identical to the HPA4 except that it eliminates the headphone outputs. The LA4 is well-suited to customers who do not need the headphone amplifier.

The LA4 is a line-level preamplifier that is designed to sit between a reference-quality D/A converter and a reference-quality power amplifier. This is not an easy task. Most hi-fi preamplifiers introduce significant noise and distortion due to the necessity to provide volume control and input switching. To solve this problem, the LA4 is completely relay controlled and features analog amplifiers with vanishingly low distortion. It features relay gain control, relay input selection, and relay muting. The entire system incorporates the finest gold-contact relays available.

The LA4 is 100% analog. It is designed to be driven from external D/A converters and external line-level analog sources.

DESIGNED, ASSEMBLED, AND TESTED IN THE USA
This Benchmark product was designed, assembled, and tested in the USA using USA and imported components. Most major components are made in USA.

THIS PRODUCT ONLY FOR SALES IN SINGAPORE VIA THIS WEBSITE

Read more
Color
1
Quantity
1

S$4,267.00 (W/out GST)

S$4,267.00 (With GST)

For local delivery, charges may apply. For international orders, please email us at sales@mysoundaffairs.com.

Send Enquiry on Benchmark LA4 Line Amplifier

Thank you for your enquiry. We will get back to you as soon as possible.

Send Enquiry on Benchmark LA4 Line Amplifier

* denotes required fields.

Overview

FEATURES

  • Benchmark Low-Noise Line Amplifier
  • 256-Step Fully-Balanced Relay Gain Control, 0.5 dB Steps
  • Precision Timed Relay Closures
  • Precision Metal Film Resistors
  • Gold-Contact Relays
  • Balanced and Unbalanced I/O
  • 0.01 Hz to 500 kHz
  • SNR > 135 dB
  • THD < 125 dB (0.00006%)
  • Touch Screen Control
  • IR Remote Control (optional)

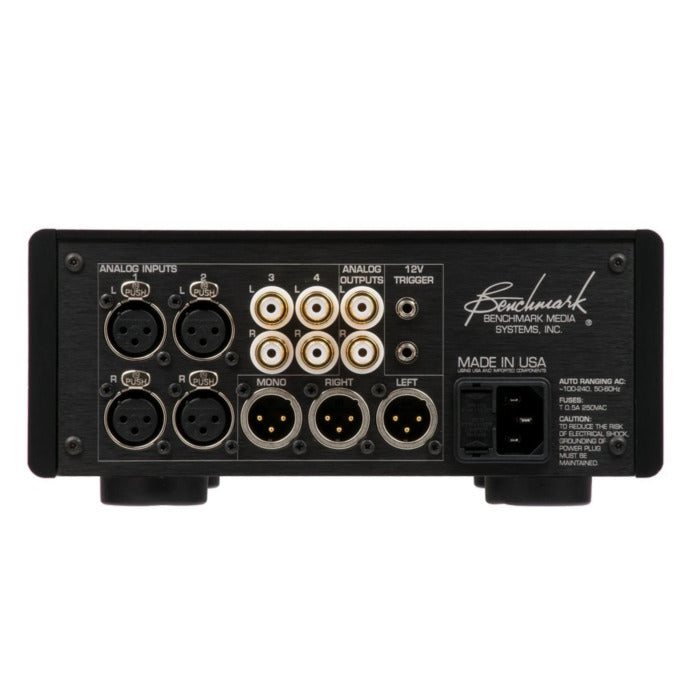

  • 2 Balanced Stereo Line Inputs
  • 2 Unbalanced Stereo Line Inputs
  • 1 Balanced Stereo Line Output
  • 1 Unbalanced Stereo Line Output
  • 1 Balanced Mono Sum Output
  • 2 Bidirectional 12V Trigger Ports

General Specs

DIMENSIONS:

8.65" W x 3.88" H x 8.33" D - Including Feet
(219 x 99 x 212 )mm

WEIGHT:
8.0 lbs (3.6kg)., 12 lbs (5.44kg). shipping

POWER:
12W Typical Input Power
17W Maximum Input power
0.33 W Standby Power (when off)
Internal Universal Power Supply
